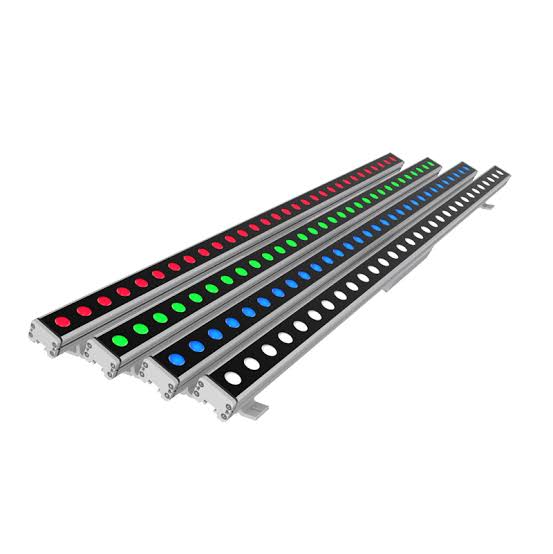

Surface-Mounted RGB/RGBW Combined Source
Professional RGB/RGBW architectural facade lighting combining OSRAM LED technology, smart pixel control, multiple wattage options, and DMX/RDM control for dynamic exterior illumination.
Additional information
| Wattage | 20W, 30W, 45W, 60W |
|---|---|
| Color Temperature | 2700K, 3000K, 4000K, 6500K |
| CCT / Light Color | RGB, RGBW, RGBW Combined Source |
| Input Voltage | 100–277V AC, 24V DC |
| IP Rating | IP66 |
| CRI | CRI 80 |
| Mounting Type | Surface Mounted |
| Control Protocol | DMX, RDM |
| Dimming | Dimmable |
Key Features
- RGB and RGBW lighting options
- OSRAM RGBW combined diode
- Smart pixel selectable RDM interface option
- Multiple wattage options
- Flicker-free operation
- DMX/RDM control
- IP66 protection
Applications
- Architectural Facades
- Dynamic Building Lighting
- Landmarks
- Hotels & Hospitality
- Commercial Buildings
Technical Specifications
Input Voltage: AC 100–277V / DC 24V
Wattage: 20W / 30W / 45W / 60W
Operating Temperature: -10°C to 50°C
Light Source: OSRAM RGBW combined diode
Smart Pixel Control: Selectable RDM interface option available
Housing: High-density 6063 pure aluminum
Power Factor: > 0.9
CRI: 80
IP Rating: IP66
Control: DMX/RDM
Lifetime: L70 > 50,000 hours
